Description

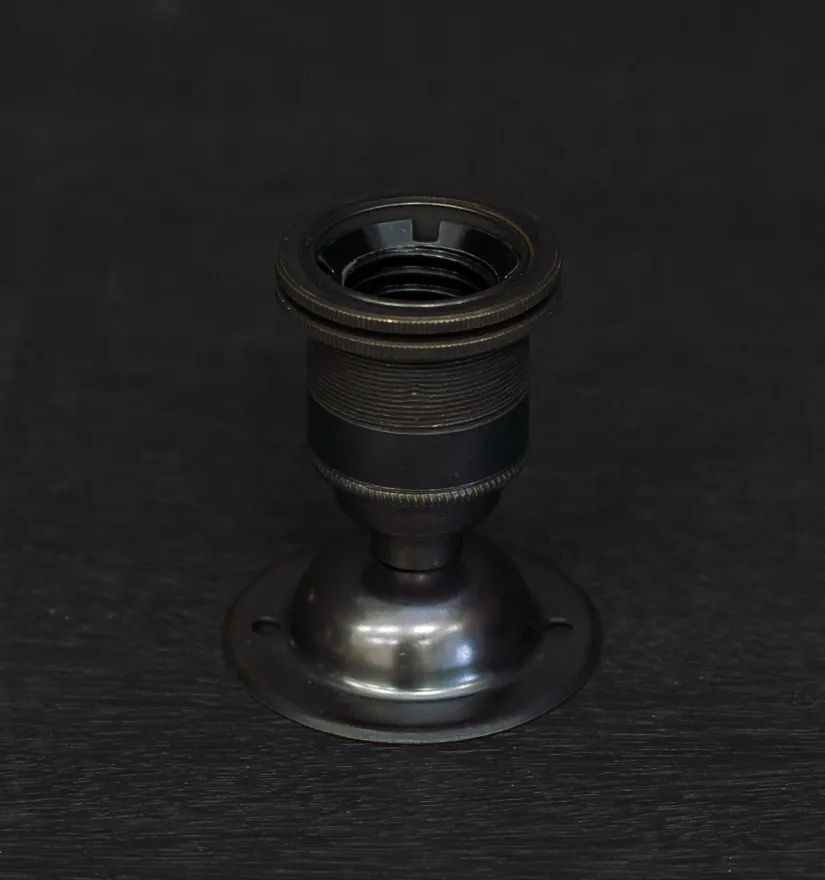

S. Lilley & Son Bronze ES Batten Holder

This vintage style lampholder is produced by S. Lilley & Son, an English company that has been in operation since 1840.
Passionate about producing specialised lighting components, this range has been crafted to a superior standard.



Product Specifications

ES Cordgrip Input Voltage Max: 250VAC
Rated Current Max: 4A
Earth Requirement: Yes
Temperature Classification: T170
Material: Brass & ceramic
Base Type: Edison Screw, ES, E27
Entry Type: Collet Style Cable Grip
Maximum Static Load: 3kgs
Shade Nut: Yes, one as standard.
Recommended Shade Hole Dia: 38mm
75mm height.
66mm diameter of wall/ceiling rose.
38mm diameter over lampholder thread.
48mm diameter over Shade Ring.
